Bardene Boksburg SA
ATC PRINT Files-No cover
R500,00
3D Printable Automatic Tool Changer (ATC) for CNC ER20 Spindle — Self-Build Plans
Upgrade your CNC router with automatic tool changing — no pneumatics, no expensive spindle upgrades. This self-build file pack includes all 3D printable parts to build your own spindle-torque ATC, compatible with ER20 collet spindles. Print, assemble, and run multi-tool jobs unattended.
⚠️ Compatibility Required: This ATC requires a CNC controller and firmware capable of macro execution and tool-change commands (M6, M66). The included macros are written for GRBL/grblHAL-based machines and have been tested on grblHAL specifically. They have not been tested on LinuxCNC, Mach3/4, or other controllers, and are not guaranteed to work without modification on those platforms. Please confirm your machine can run automated tool changes before purchasing.
No refunds on digital products. Watch the assembly video here https://youtu.be/lOLs0KqrZkg?si=hwRbxnW07gJf4_Ng
This product is licensed under the Benchworks Tools Digital File License.
By purchasing these print files, you are granted a license to print, build, and use one Automatic Tool Changer for your own workshop — including using it commercially on your own CNC to produce parts, products, or work for clients.
This license covers one build per purchase. You shall not print or cut additional complete units, parts, or kits from this design for resale, nor share, sub-license, sell, rent, host, transfer, or distribute the digital files themselves in any way, including derivative or modified versions. Reproducing, remaking, or distributing this ATC — as a full build, as individual parts, or as the print files — for sale to others requires separate written permission from Benchworks Tools.
South African rand (R) - ZAR
ATC Self-Build Pack — Basic (No Dust Cover)
Build your own Automatic Tool Changer for your CNC and Spindle with ER20 Collet size, with this 3D printable file pack. Designed for makers and CNC enthusiasts who want automatic tool changing without the high cost of commercial solutions. Provided macros are for GRBL/GRBLHAL based machines.
Compatibility: This ATC requires a CNC controller and firmware capable of macro execution and tool-change commands (M6, M66). The included macros are written for GRBL/grblHAL-based machines and have been tested on grblHAL specifically. They have not been tested on LinuxCNC, Mach3/4, or other controllers, and are not guaranteed to work without modification on those platforms.
Before purchasing, please confirm your spindle can run at low RPM, as this is required for the load/unload procedure during automated tool changes.

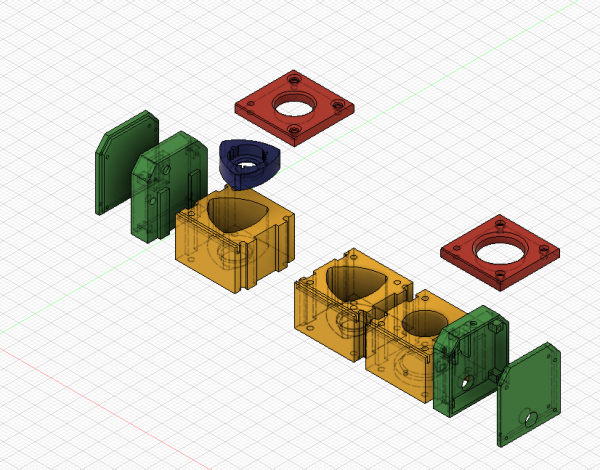

What’s Included:
- 1x Tool Pocket body
- 1x Collet Nut Holder
- 1x Top Cover
- Probe housing-its optional if you use a different probe or tool setter(remember to add X Y Coordinates in macro of your toolsetter/probe
- IR Beam Sensor housings and covers
- Full assembly guide (PDF)
- Wiring instructions to connect your sensors to CNC controller. Activate/configure the selected INPUT for tool recognition. depending on your firmware/sender software, you may need research how to.
Print Settings: Print tool pockets, covers and housings in PLA or PETG. Print the nut holder in ABS for added strength and heat resistance.
Before You Buy — Please Read:
- Additional hardware is required to complete the build (springs, ball bearings, bolts, IR sensors). See the parts checklist in the assembly guide.
- Your CNC controller must support macro execution and the M66 command for IR beam tool recognition. The sensor can be disabled in the macro if not used (disabled by default).
- No refunds on digital products — please ensure your machine is capable of running automated tool changes before purchasing.
- Support is limited to assembly questions. store@benchworks.co.za .Firmware setup, sender configuration and wiring are machine-dependent and cannot be supported.
Watch the full build video before purchasing: YouTube Build Video →
